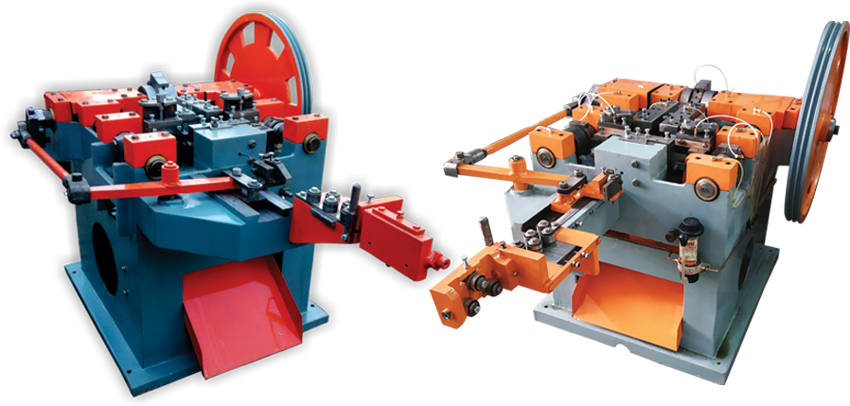

Wire Nail Making Machine

We are offering our clients a wide range of Wire Nail Making Machines. The offered wire nail making machine is developed by expert’s observation by using advance technologies & unfinished material. This wire nail making machine is highly admired among customers for their outstanding features. Additionally this wire nail making machine is presented with different stipulations to choose from at market rates.

Features :

Rugged construction
Easy maintenance
Dimensionally accurate

Technical Specification of Wire Nail Making Machines

Model :	GI - 1	GI - 2	GI - 3	GI - 4	GI - 5	GI - 6	GI - 8
Length of Nail	1/2” to 1.5” 12 to 38 mm	1/2” to 2” 12 to 50 mm	¾” to 3” 20 to 80 mm	1” to 4” 25 to 100 mm	1.5” to 5” 35 to 125 mm	2” to 6” 50 to 150 mm	3” to 8” 75 to 200 mm
Wire Gauge Size	18 to 14 SWG 1.2 to 2 mm	16 to 12 SWG 1.6 to 2.6 mm	14 to 9 SWG 2 to 3.7 mm	12 to 8 SWG 2.6 to 4 mm	8 to 6 SWG> 4 to 4.9 mm	8 to 4 SWG 4 to 6 mm	8 to 4 SWG 4 to 6 mm
Production/minute Pieces	400 - 450	350 - 400	300 - 350	200 - 250	150 - 200	100 - 150	100 - 120
Power Required (HP x RPM )	1.5 x 1440	2 x 1440	3 x 1440	5 x 1440	7.5 x 960	7.5 x 960	10 x 960
Net / Gross Weight (Kgs.)	350 / 450	500 / 650	850 / 1050	1200 / 1550	1600 / 2400	1800 / 2600	2400 / 3200
Dimensions (m):	0.85 x 0.85 x 0.90	1.05 x 1.05 x 1.02	1.20 x 1.20 x 1.10	1.35 x 1.25 x 1.10	1.50 x 1.50 x 1.16	1.80 x 1.90 x 1.40	2.15 x 1.96 x 1.38
Shipping Volume (m3):	0.65	1.15	1.60	1.90	2.65	4.80	5.80

The accessories required for the Plant

Nail Polishing Drum

The nail polishing drum is used for sourcing and polishing the wire nails. It revolves at 10 to 45 R. P. M having capacity 100 kg. Per hour. It require 2 H.P electric motor.
The nails with nippings are loaded into the drums and suitable quantity of saw dust and leather cutting is added. Thereafter they are tumbled for approximately 20 – 40 minutes depending on the dirt accumulation on the nails. The nippings and scouring can be drawn off together at the end of the process, if the machine is ordered with a dust filter unit with an exhauster. Otherwise the nails can be separated through a sieve also.

Grinding Machine :

The Grinding Machine is specially designed to sharpen and grinding the dies and cutters of the machine. It is fitted with four grinding wheels of different shapes and special attachments. One H.P. x 2800 R.P.M. Motor is fitted in it.
